| Brand Name : | CSQ |
| Certification : | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Price : | According to the material and amount. |
| Payment Terms : | T/T or Paypal |
| Supply Ability : | 10,000 pcs per month |
| Delivery Time : | 30-45 works day |

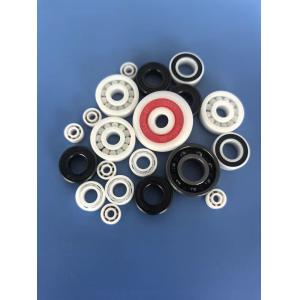

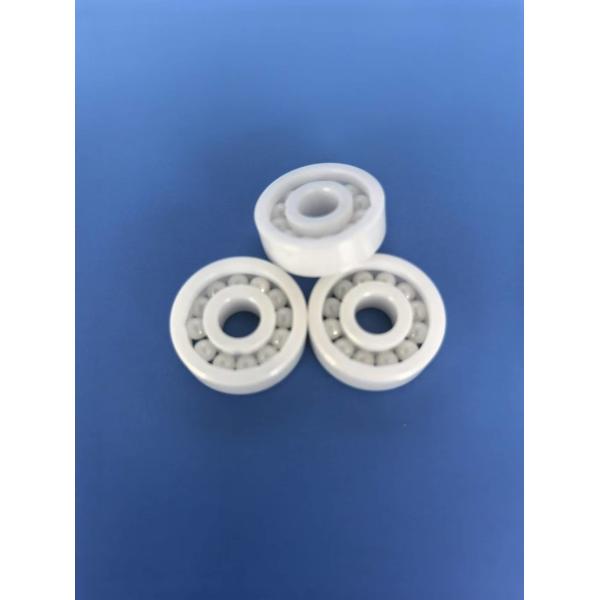

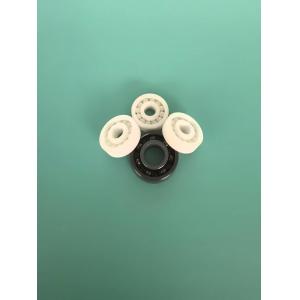

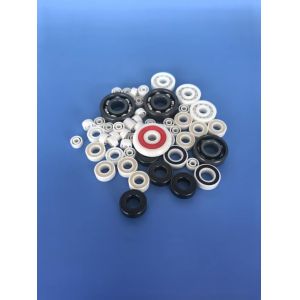

The Full Complement Ceramic Ball Bearing is constructed entirely from 100% ceramic materials (cageless design), maximizing ball count to significantly enhance load capacity. It is specifically engineered for highly corrosive, high-temperature, and lubrication-free extreme environments.
| Feature | Technical Advantage |
| All-Ceramic Structure | Rolling elements + rings made of silicon nitride (Si₃N₄) or zirconia (ZrO₂), no metal components |
| Full Complement Design | 20-30% more ceramic balls than standard bearings, increasing radial load capacity by 50% |
| Corrosion Resistance | Withstands pH 0-14 acids/alkalis, seawater, and chlorides (10x lifespan of 316 stainless steel) |
| High-Temperature Performance | Si₃N₄: -150°C to +800°C; ZrO₂: -150°C to +400°C |
| Self-Lubrication | Ultra-low dry friction coefficient (μ≈0.05), operable in vacuum/oil-free conditions |
ZrO₂: Bio-inert, suitable for medical/food industries
Application
-Chemical Pumps: 98% sulfuric acid transfer (sealless design)
- Semiconductor Equipment: Wafer-handling robots (zero metallic
contamination)
- Aerospace: Satellite reaction wheels (maintenance-free in vacuum)
- Energy Sector: Molten salt pumps (continuous operation at 700°C)

Ceramic Ball Bearings Product Technical Support and Services:
- Expert engineering support to optimize bearing performance in
specific applications
- Custom bearing design and manufacturing
- Material selection consultation
- Failure analysis and troubleshooting services
- Training and education on bearing installation, maintenance, and
lubrication
- Testing and validation services to ensure performance and quality
Product Packaging:
Our Ceramic Ball Bearings are carefully packaged to ensure their
safety during transportation. Each bearing is individually wrapped
in bubble wrap and placed in a sturdy cardboard box. The box is
then sealed with packing tape to prevent any movement or damage
during shipping. Shipping:
We offer worldwide shipping for our Ceramic Ball Bearings. Orders
are processed and shipped within 1-2 business days. Our standard
shipping method is via UPS Ground, which typically takes 3-5
business days for delivery within the United States. International
shipping times may vary depending on the destination country.
Q: What is the brand name of the Ceramic Ball Bearings?
A: The brand of the Ceramic Ball Bearings is CSQ.
Q: What is the model number of the Ceramic Ball Bearings?
A: The model number of the Ceramic Ball Bearings is 688 CE.
Q: Where is the place of origin for the Ceramic Ball Bearings?
A: The place of origin for the Ceramic Ball Bearings is China.
Q: What certifications do the Ceramic Ball Bearings have?
A: The Ceramic Ball Bearings have the following certifications: FDA,
REACH, ROHS, ISO9001, ISO14001, ISO45001.
Q: What is the minimum order quantity for the Ceramic Ball Bearings?
A: The minimum order quantity for the Ceramic Ball Bearings is 50
PCS, but it is negotiable.
Q: What is the packaging and delivery time for the Ceramic Ball
Bearings?
A: The Ceramic Ball Bearings are packaged with foam and a carton box.
The delivery time is 30-45 working days.
Q: What are the payment terms and supply ability for the Ceramic Ball
Bearings?
A: The payment terms for the Ceramic Ball Bearings are T/T or Paypal.
The supply ability is 10,000 pcs per month and the price varies
according to the material and amount.
|
